S39929

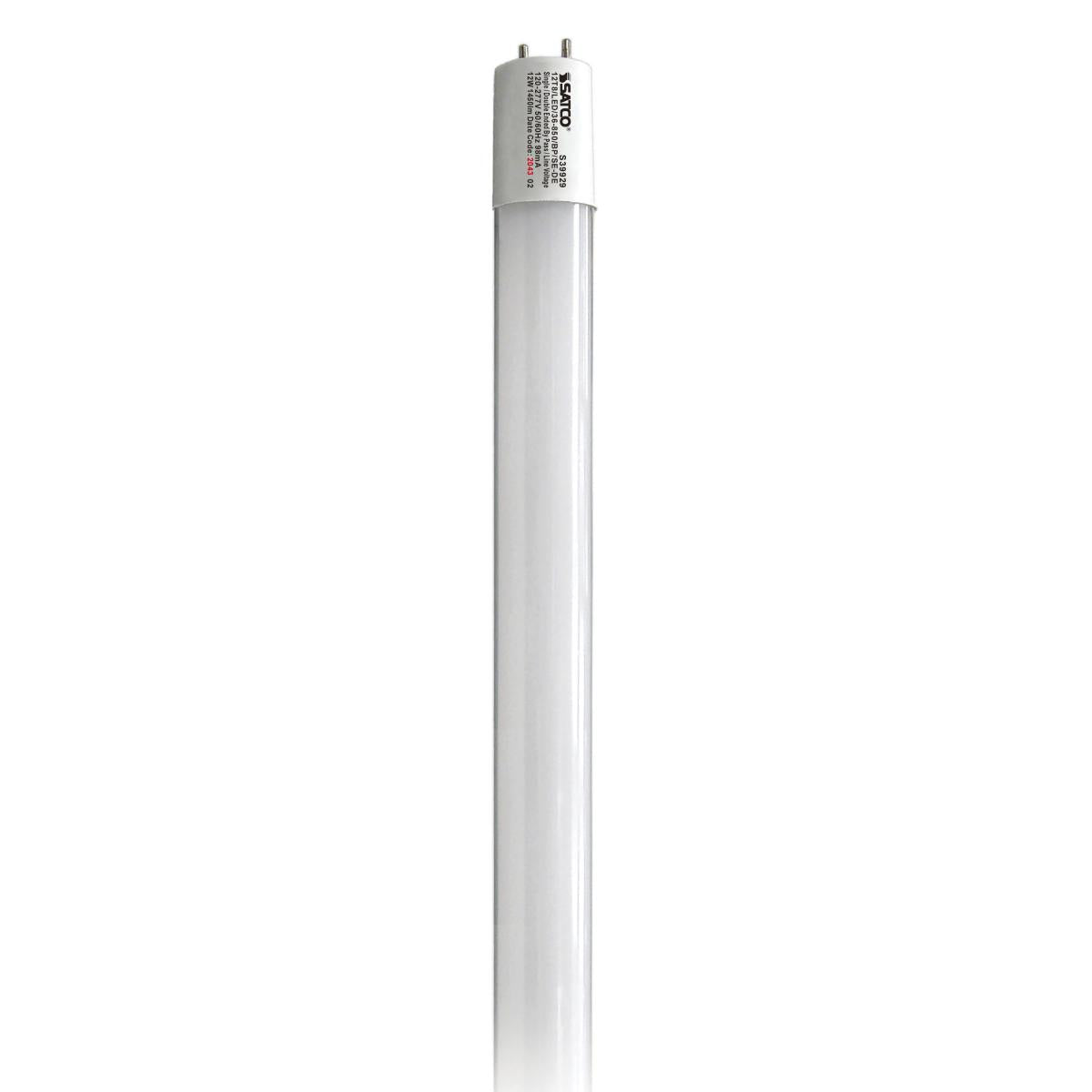

12 Watt T8 LED - 3Ft - 5000K - Medium Bi Pin base - 50000 Average rated hours - 1450 Lumens - Type B - Ballast Bypass - Single or Double Ended Wiring
12 Watt T8 LED - 3Ft - 5000K - Medium Bi Pin base - 50000 Average rated hours - 1450 Lumens - Type B - Ballast Bypass - Single or Double Ended Wiring
Regular price
$5.72
Regular price
Sale price
$5.72
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
SATCO's Type B ballast bypass lamps, designed to replace T8 or T12 medium bi-pin fluorescent lamps are available in 2', 3', and 4' lengths. They are engineered for single or double-ended wiring options and will not light unless ballast is bypassed. Commercial venues, schools, hospitality, health care - any large scale lighting application - will benefit from immediate energy savings and less maintenance.
Share
Product Details
| Amps | 0.100-0.0433A |
|---|---|
| ANSI base size | G13 |
| Ballasting requirements | Ballast Bypass |
| Base type | Medium Bi Pin |
| Beam spread | 210 |
| Bulb length | 3 |
| Bulb shape | T8 |
| CCT | 5000K |
| CCT selectable | No |
| Color temperature | Natural Light |
| CRI | 80+ |
| FCC compliant | Yes |
| Finish | Gloss White |
| Fluorescent equivalent | 25W |
| Height | 1.1 in |
| Housing color | White |
| Incandescent equivalent | 50W |
| Indoor outdoor | Indoor;Outdoor |
| Installation notes | Not for use in vapor tight fixtures. |
| Lamp ballast type a b c | Type B |
| Lamp end type | Double Ended;Single Ended |
| Lamp filament | LED |
| Length | 36 in |
| Lens finish | Gloss White |
| Lens material | Glass |
|---|---|
| Life hours rated | 50000 |
| Lighting technology | LED |
| Location rating | Damp |
| Lumens | 1450L |
| Material | Glass |
| Operating frequency | 50/60Hz |
| Operating temperature | -20C (-4F) to +45C (+113F) |
| Pack quantity | 1 |
| Power factor | 0.9 |
| Product notes | Built-in shock resistant circuit - (not hot until both ends are installed) |
| Product type | Linear |
| Rated for enclosed fixture | Yes |
| RoHS compliant | Yes |
| Safety listing | cRUus - Recognized Component;cULus - Certified;cULus - Classified |
| Thd | 20% |
| Three way compatible | No |
| Tube guard use | Yes |
| Volts | 120V-277V |
| Warranty | 5-Years |
| Wattage | 12W |
| Weight | 0.45 lb |
| Width | 1.1 in |
