S11766

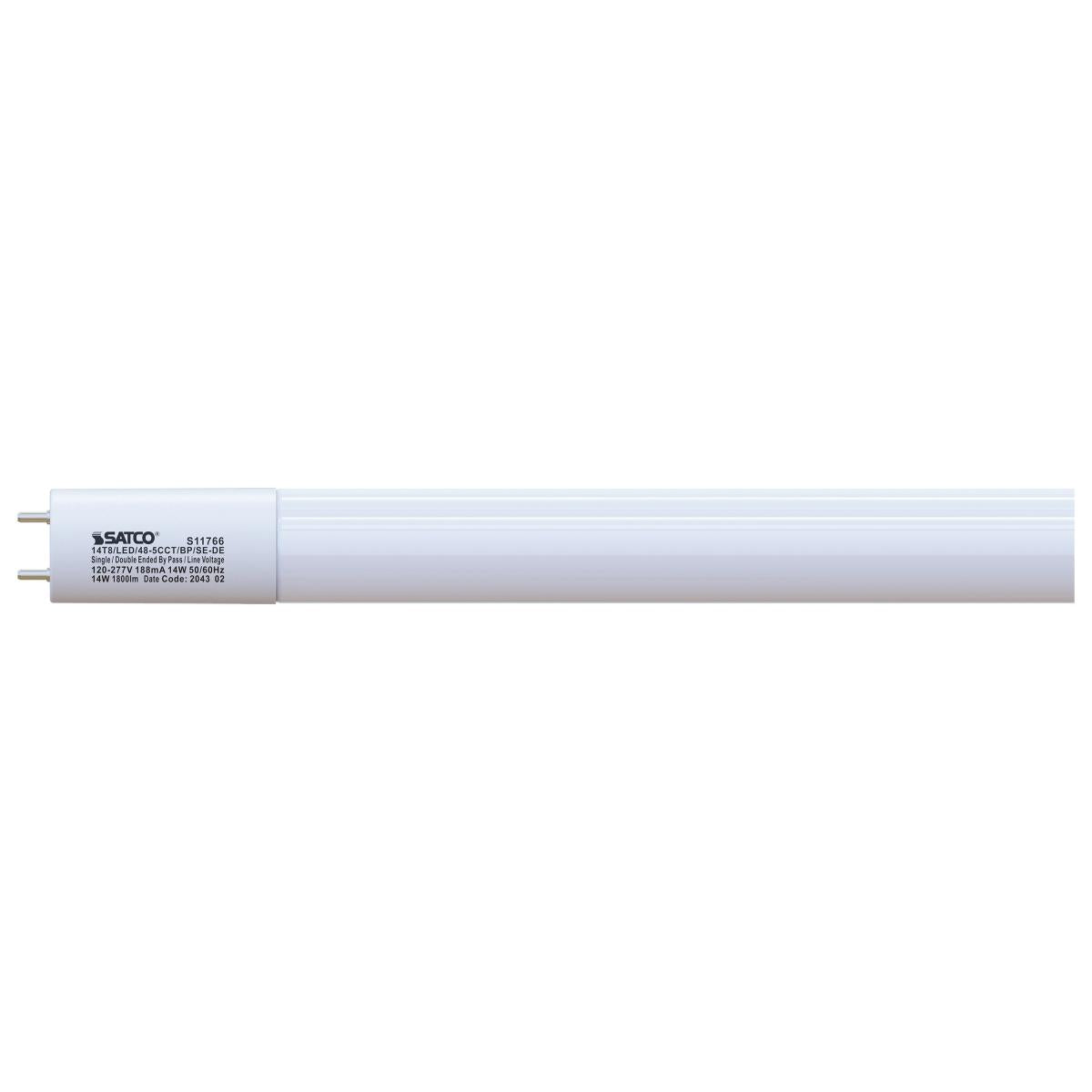

14 Watt - 4 Foot LED - T8 - CCT Selectable - Type B Ballast Bypass - G13 Base - 120-277 Volt
14 Watt - 4 Foot LED - T8 - CCT Selectable - Type B Ballast Bypass - G13 Base - 120-277 Volt
Regular price
$6.66
Regular price
Sale price
$6.66
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
SATCO NUVO'S Type B Ballast Bypass lamps are designed to replace T8 or T12 medium bi-pin fluorescent lamps. Engineered for single or double-ended wiring options, these lamps will not light unless the ballast is bypassed. Choose from 3000K, 3500K, 4000K, 5000K, and 6500K color temperatures with CCT selection at installation. Available in two, three, and four-foot lengths for immediate energy savings in a variety of commercial and industrial applications.
Share
Product Details
| Amps | 0.117-0.051A |
|---|---|
| ANSI base size | G13 |
| Ballasting requirements | Ballast Bypass |
| Base type | Medium Bi Pin |
| Beam spread | 210 |
| Bulb length | 4 |
| Bulb shape | T8 |
| CCT | 3000K/3500K/4000K/5000K/6500K |
| CCT selectable | Yes |
| Color temperature | Warm White to Daylight |
| CRI | 80+ |
| FCC compliant | Yes |
| Finish | White |
| Fluorescent equivalent | 32W |
| Height | 0.94 in |
| Housing color | White |
| Incandescent equivalent | 75W |
| Installation notes | Not for use in vapor tight fixtures. |
| Lamp ballast type a b c | Type B |
| Lamp end type | Double Ended;Single Ended |
| Lamp filament | LED |
| Length | 47.8 in |
| Lens finish | Frost |
|---|---|
| Lens material | Glass |
| Life hours rated | 50000 |
| Lighting technology | LED |
| Location rating | Damp |
| Lumens | 1700L/1700L/1800L/1800L/1800L |
| Material | Glass / Plastic |
| Operating frequency | 50/60Hz |
| Operating temperature | -20C (-4F) to +45C (+113F) |
| Pack quantity | 1 |
| Power factor | 0.9 |
| Product type | Linear |
| Rated for enclosed fixture | Yes |
| RoHS compliant | Yes |
| Safety listing | cRUus - Recognized Component;cULus - Certified;cULus - Classified |
| Thd | <25% |
| Three way compatible | No |
| Volts | 120V-277V |
| Warranty | 5-Years |
| Wattage | 14W |
| Weight | 0.45 lb |
| Width | 0.94 in |
