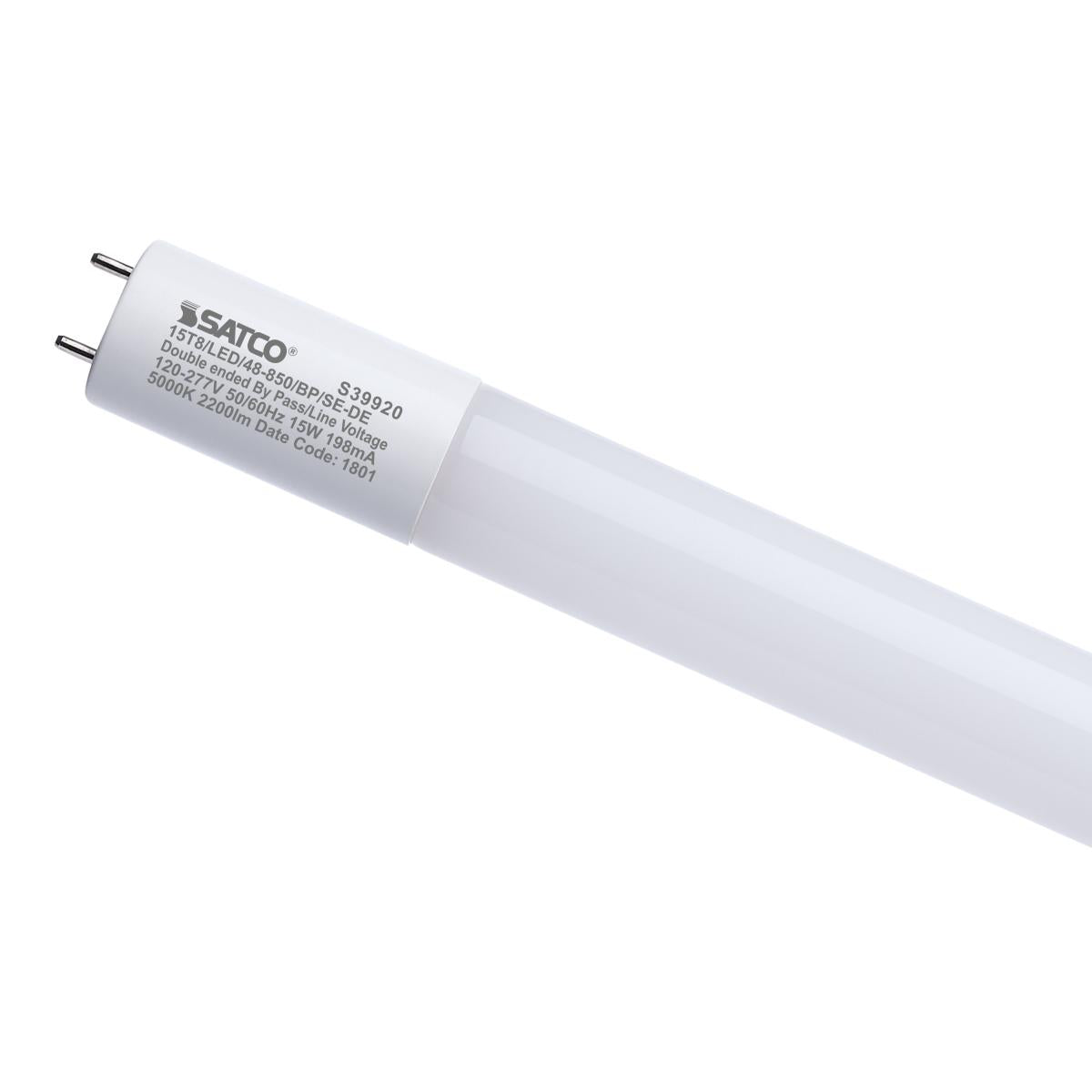

15 Watt 4 Foot T8 LED - 5000K CCT - Medium Bi Pin Base - Ballast Bypass - Single or Double Ended Wiring - 120-277 Volt
15 Watt 4 Foot T8 LED - 5000K CCT - Medium Bi Pin Base - Ballast Bypass - Single or Double Ended Wiring - 120-277 Volt
Regular price
$5.89
Regular price
Sale price
$5.89
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
SATCO's Type B ballast bypass lamps, designed to replace T8 or T12 medium bi-pin fluorescent lamps are available in 2', 3', and 4' lengths. They are engineered for single or double-ended wiring options and will not light unless ballast is bypassed. Commercial venues, schools, hospitality, health care - any large scale lighting application - will benefit from immediate energy savings and less maintenance.
Share
Product Details
| Amps | 0.125-0.054A |
|---|---|
| ANSI base size | G13 |
| Ballasting requirements | Ballast Bypass |
| Base type | Medium Bi Pin |
| Beam spread | 210 |
| Bulb length | 4 |
| Bulb shape | T8 |
| CCT | 5000K |
| CCT selectable | No |
| Color temperature | Natural Light |
| CRI | 80+ |
| Dimmable | Non-Dimmable |
| FCC compliant | Yes |
| Finish | Gloss White |
| Fluorescent equivalent | 25W/28W/30W/32W |
| Height | 1 in |
| Housing color | White |
| Incandescent equivalent | 75W |
| Indoor outdoor | Indoor and Outdoor |
| Installation notes | Not for use in vapor tight fixtures. |
| Lamp ballast type a b c | Type B |
| Lamp end type | Double Ended;Single Ended |
| Lamp filament | LED |
| Length | 47.78 in |
|---|---|
| Life hours rated | 50000 |
| Lighting technology | LED |
| Location rating | Damp |
| Lumens | 2200L |
| Material | Glass |
| Operating frequency | 50/60Hz |
| Operating temperature | -20C (-4F) to +45C (+113F) |
| Pack quantity | 1 |
| Power factor | >0.9 |
| Product type | Linear |
| Rated for enclosed fixture | Yes |
| RoHS compliant | Yes |
| Safety listing | cRUus - Recognized Component;cULus - Classified |
| Surge protection | Built-in surge protection - 1KV |
| Thd | <20% |
| Three way compatible | No |
| Volts | 120V-277V |
| Warranty | 5-Years |
| Wattage | 15W |
| Weight | 0.5 lb |
| Width | 1 in |
