S18422

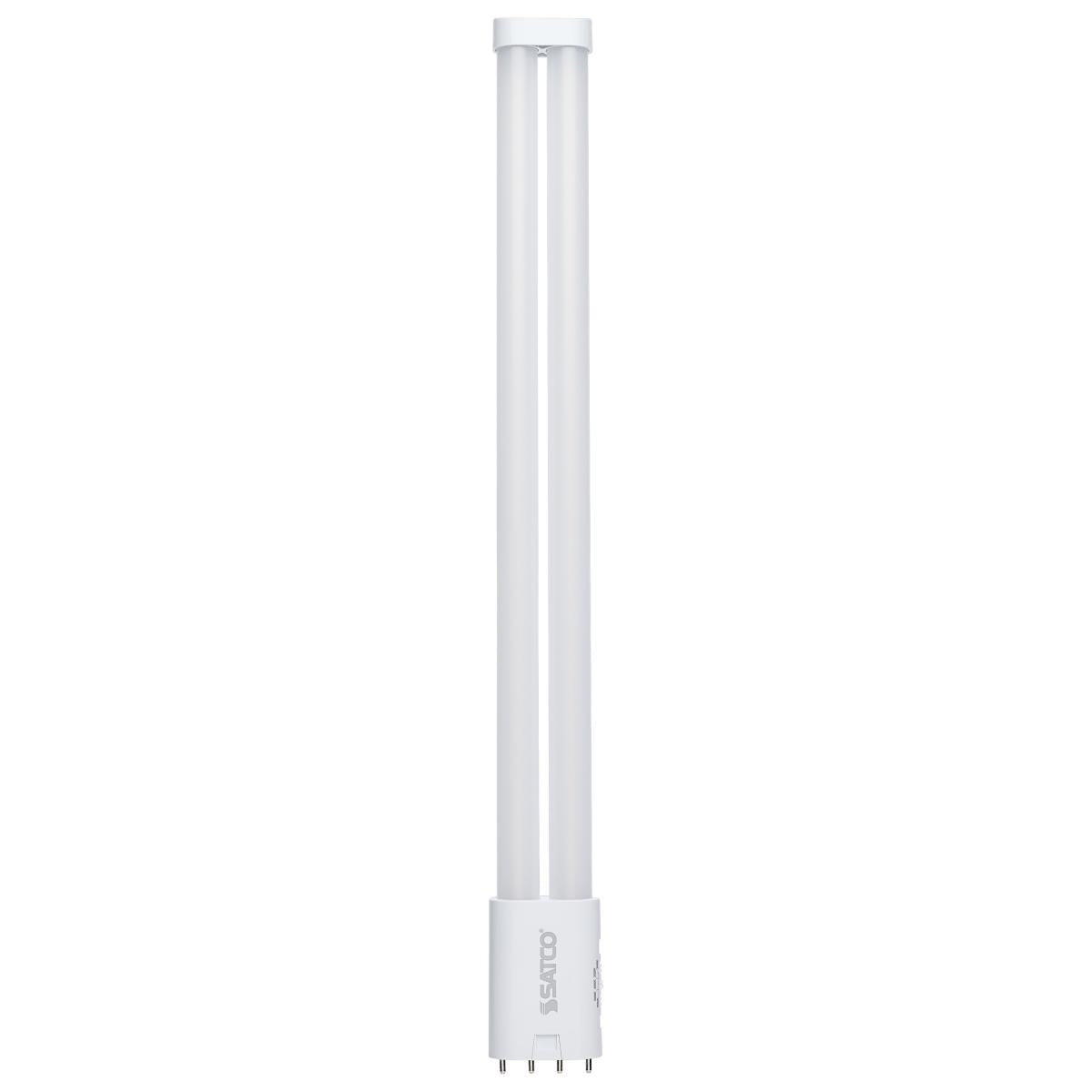

16 Watt PLL LED - 2G11 Base - 30K/35K/40K/50K/65K CCT Selectable - Ballast Bypass - 120-277 Volt
16 Watt PLL LED - 2G11 Base - 30K/35K/40K/50K/65K CCT Selectable - Ballast Bypass - 120-277 Volt
Couldn't load pickup availability
SATCO NUVO's innovative PLL lamps offer an easy solution for upgrading older luminaires to the energy-efficient benefits of LED technology. By utilizing a Type B ballast bypass, these lamps replace outdated, less efficient CFL tubes, consuming less energy while significantly extending the lifespan of the lamp. Available in five CCT options, users can customize their lighting environment with color temperatures ranging from a warm 3000K to a crisp daylight white of 6500K. Designed for use in enclosed fixtures, these lamps ensure safe and efficient operation. The durable PET coated glass tubing enhances light quality and provides higher heat resistance. With four different models available, users can choose LED wattages ranging from 8.5W to 20W, offering equivalent brightness to traditional fluorescent lamps of 18W to 40W. The exceptional versatility and energy savings of these lamps make them an ideal choice for both residential and commercial applications.
Share

Product Details
Amps | 0.135A |
---|---|
ANSI base size | 2G11 |
Ballasting requirements | Ballast Bypass |
Base type | 2G11 |
Beam spread | 115 |
Bulb length | 1 |
Bulb shape | PL 4-Pin |
CCT | 3000K/3500K/4000K/5000K/6500K |
CCT selectable | Yes |
Color temperature | Soft White to Daylight |
CRI | 80+ |
Dimmable | Non-Dimmable |
FCC compliant | Yes |
Finish | Frost |
Fluorescent equivalent | 36W |
Height | 0.94 in |
Housing color | White |
Indoor outdoor | Indoor |
Installation notes | Not for use in vapor tight fixtures. |
Lamp ballast type a b c | Type B |
Lamp filament | LED |
Length | 17.72 in |
Life hours rated | 50000 |
---|---|
Lighting technology | LED |
Location rating | Damp |
Lumens | 1900L/1950L/2000L/2000L/2000L |
Material | Glass |
Operating frequency | 60Hz |
Operating temperature | -20C (-4F) to +45C (+113F) |
Pack quantity | 1 |
Power factor | 0.9 |
Product type | PL |
Rated for enclosed fixture | Yes |
RoHS compliant | Yes |
Safety listing | cRUus - Recognized Component;cULus - Certified;cULus - Classified |
Surge protection | Built-in-surge protection - 0.5KV |
Thd | 20% |
Three way compatible | No |
Volts | 120V-277V |
Warranty | 5-Years |
Wattage | 16W |
Weight | 0.39 lb |
Width | 1.89 in |
