S11654

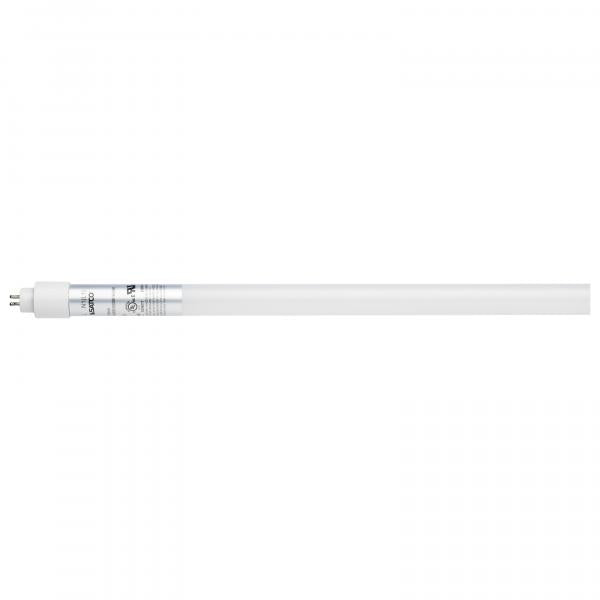

16 Watt 3 Foot T5 LED - CCT Selectable - G5 Base - Type B - Ballast Bypass - Single or Double Ended Wiring - White Finish - 120-277 Volt
16 Watt 3 Foot T5 LED - CCT Selectable - G5 Base - Type B - Ballast Bypass - Single or Double Ended Wiring - White Finish - 120-277 Volt
Regular price
$12.05
Regular price
Sale price
$12.05
No reviews
Quantity
Couldn't load pickup availability
SATCO NUVO LED T5 lamps are the perfect replacement for fluorescent tubes. They are easy to install, energy efficient, and long-lasting. Available in 2-foot, 3-foot, and 4-foot lengths, these lamps are also five CCT selectable, so you can choose the perfect light color for your space. And for high voltage applications, a 4-foot model is also offered in 347V.
Share
Product Details
| Amps | 0.133-0.058A |
|---|---|
| ANSI base size | G5 |
| Ballasting requirements | Ballast Bypass |
| Base type | Miniature Bi Pin |
| Beam spread | 160 |
| Bulb shape | T5 |
| CCT | 3000K/3500K/4000K/5000K/6500K |
| CCT selectable | Yes |
| Color temperature | Soft White to Daylight |
| CRI | 80+ |
| Enclosure rating | Enclosed Rated Lamp |
| FCC compliant | Yes |
| Finish | White |
| Fluorescent equivalent | 39W |
| Height | 0.87 in |
| Housing color | White |
| Incandescent equivalent | 100W |
| Indoor outdoor | Indoor |
| Installation notes | Not for use in vapor tight fixtures. |
| Ip rating | IP20 |
| Lamp ballast type a b c | Type B |
| Lamp end type | Double Ended;Single Ended |
| Lamp filament | LED |
| Length | 33.46 in |
| Lens finish | Frost |
|---|---|
| Lens material | Glass |
| Life hours rated | 50000 |
| Lighting technology | LED |
| Location rating | Damp |
| Lumens | 2000L/2075L/2100L/2150L/2050L |
| Material | Plastic |
| Operating frequency | 50/60Hz |
| Operating temperature | -20C (-4F) to +45C (+113F) |
| Pack quantity | 1 |
| Power factor | >0.9 |
| Product type | Linear |
| Rated for enclosed fixture | Yes |
| RoHS compliant | Yes |
| Safety listing | cRUus - Recognized Component;cULus - Certified;cULus - Classified |
| Surge protection | Built-in-surge protection - 0.7KV |
| Thd | <25% |
| Three way compatible | No |
| Tube guard use | No |
| Volts | 120V-277V |
| Warranty | 5-Years |
| Wattage | 16W |
| Weight | 0.43 lb |
| Width | 0.87 in |
