S11731

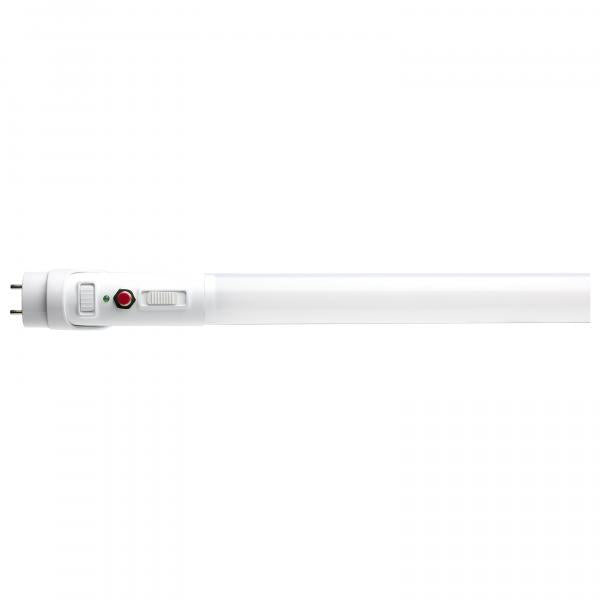

17 Watt 48 Inch T8 LED - 35K/40K/50K CCT Selectable - Ballast Bypass with Battery Backup - G13 Base - 120-277 Volt
17 Watt 48 Inch T8 LED - 35K/40K/50K CCT Selectable - Ballast Bypass with Battery Backup - G13 Base - 120-277 Volt
Regular price
$60.45
Regular price
Sale price
$60.45
No reviews
Quantity
Couldn't load pickup availability
SATCO NUVO's T8 lamps with Battery Backup are the logical choice for commercial installations. Providing up to 90-minutes of illumination in the event of a power failure, these lamps are ideal for use where backup lighting is essential. Available in 15W and 17W options, both are designed to replace our most popular T8 and T12 fluorescent lamps, with the 17W model offering the option of higher lumen output. These new lamps have Increased safety and energy efficiency while reducing maintenance costs with this easy-to-install fluorescent alternative.
Share
Product Details
| Amps | 0.142-0.061A |
|---|---|
| ANSI base size | G13 |
| Ballasting requirements | Ballast Bypass |
| Base type | Medium Bi Pin |
| Beam spread | 140 |
| Bulb shape | T8 |
| CCT | 3500K/4000K/5000K |
| CCT selectable | Yes |
| Color temperature | Neutral White to Natural Light |
| CRI | 80+ |
| Enclosure rating | Not for use in fully enclosed vapor tight fixtures |
| FCC compliant | Yes |
| Finish | White |
| Fluorescent equivalent | 32W |
| Height | 1.34 in |
| Housing color | White |
| Incandescent equivalent | 90W |
| Indoor outdoor | Indoor |
| Installation notes | Not for use in vapor tight fixtures. Maximum Mounting Height: 13 Feet |
| Ip rating | IP20 |
| Lamp ballast type a b c | Type B |
| Lamp end type | Single Ended |
| Lamp filament | LED |
| Length | 48.11 in |
| Lens finish | Frost |
| Lens material | Polycarbonate (PC) |
|---|---|
| Life hours rated | 50000 |
| Lighting technology | LED |
| Location rating | Damp |
| Lumens | 2100L/2300L/2200L |
| Material | Aluminum |
| Operating frequency | 60Hz |
| Operating temperature | -20C (-4F) to +45C (+113F) |
| Pack quantity | 1 |
| Power factor | 0.9 |
| Product notes | Height at switch: 1.30 Inches; Work time after power failure: 90 Minutes; Battery Recharge Time is 24 hours |
| Product type | Linear |
| Rated for enclosed fixture | Yes |
| RoHS compliant | Yes |
| Safety listing | cRUus - Recognized Component;cULus - Certified;cULus - Classified |
| Surge protection | Built-in surge protection - 1KV |
| Thd | <25% |
| Three way compatible | No |
| Tube guard use | No |
| Volts | 120V-277V |
| Warranty | 5-Years |
| Wattage | 17W |
| Weight | 1.08 lb |
| Width | 2.05 in |
