S18423

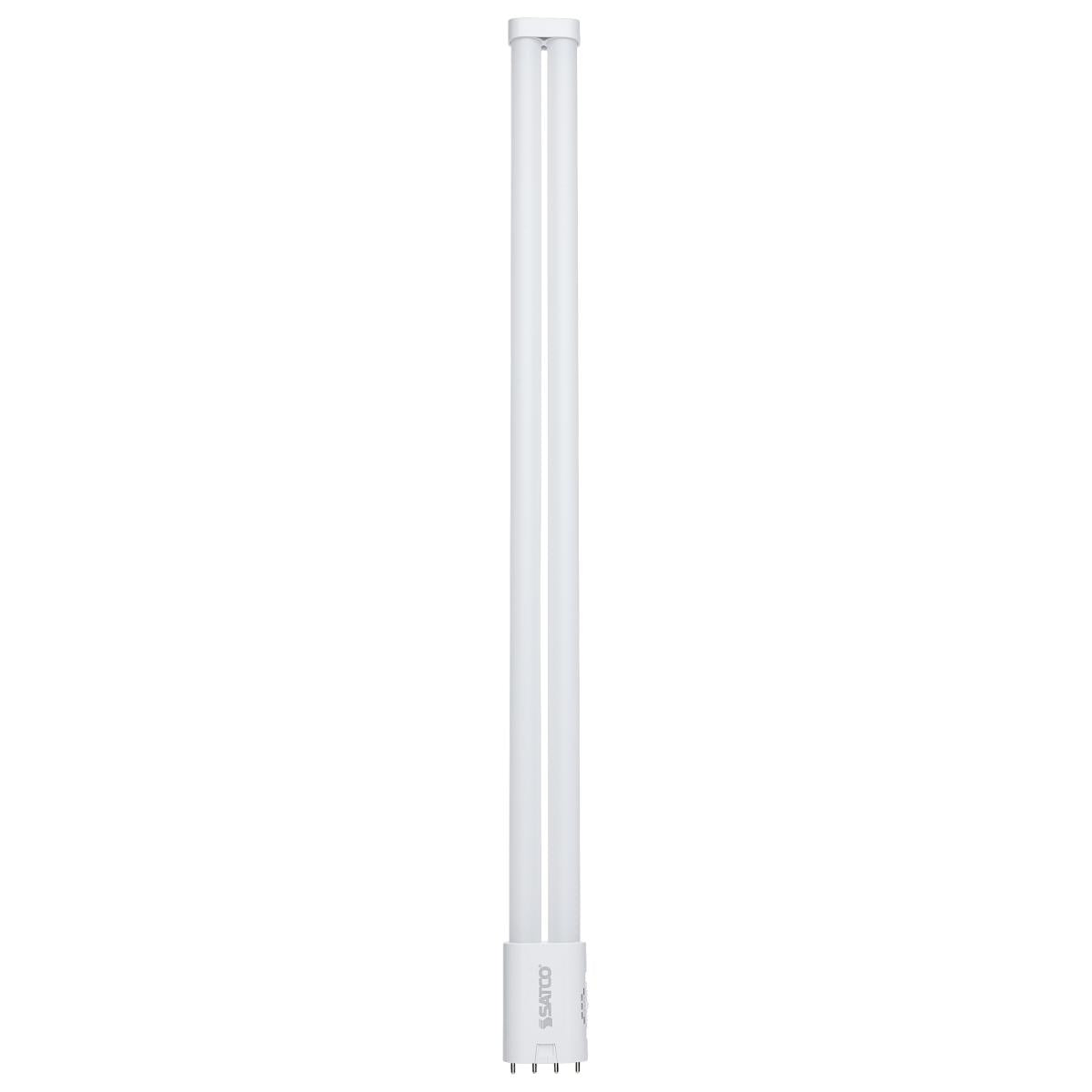

20 Watt PLL LED - 2G11 Base - 30K/35K/40K/50K/65K CCT Selectable - Ballast Bypass - 120-277 Volt

20 Watt PLL LED - 2G11 Base - 30K/35K/40K/50K/65K CCT Selectable - Ballast Bypass - 120-277 Volt

Regular price $12.60
Regular price Sale price $12.60
Sale Sold out
Shipping calculated at checkout.
Quantity

SATCO NUVO's innovative PLL lamps offer an easy solution for upgrading older luminaires to the energy-efficient benefits of LED technology. By utilizing a Type B ballast bypass, these lamps replace outdated, less efficient CFL tubes, consuming less energy while significantly extending the lifespan of the lamp. Available in five CCT options, users can customize their lighting environment with color temperatures ranging from a warm 3000K to a crisp daylight white of 6500K. Designed for use in enclosed fixtures, these lamps ensure safe and efficient operation. The durable PET coated glass tubing enhances light quality and provides higher heat resistance. With four different models available, users can choose LED wattages ranging from 8.5W to 20W, offering equivalent brightness to traditional fluorescent lamps of 18W to 40W. The exceptional versatility and energy savings of these lamps make them an ideal choice for both residential and commercial applications.

View full details

Product Details

Amps 0.185A
ANSI base size 2G11
Ballasting requirements Ballast Bypass
Base type 2G11
Beam spread 140
Bulb length 2
Bulb shape PL 4-Pin
CCT 3000K/3500K/4000K/5000K/6500K
CCT selectable Yes
Color temperature Soft White to Daylight
CRI 80+
Dimmable Non-Dimmable
FCC compliant Yes
Finish Frost
Fluorescent equivalent 40W
Height 0.94 in
Housing color White
Indoor outdoor Indoor
Installation notes Not for use in vapor tight fixtures.
Lamp ballast type a b c Type B
Lamp filament LED
Length 23.5 in
Life hours rated 50000
Lighting technology LED
Location rating Damp
Lumens 2650L/2700L/2800L/2800L/2800L
Material Glass
Operating frequency 60Hz
Operating temperature -20C (-4F) to +45C (+113F)
Pack quantity 1
Power factor 0.9
Product type PL
Rated for enclosed fixture Yes
RoHS compliant Yes
Safety listing cRUus - Recognized Component;cULus - Certified;cULus - Classified
Surge protection Built-in-surge protection - 0.5KV
Thd 20%
Three way compatible No
Volts 120V-277V
Warranty 5-Years
Wattage 20W
Weight 0.44 lb
Width 1.89 in
