S23138

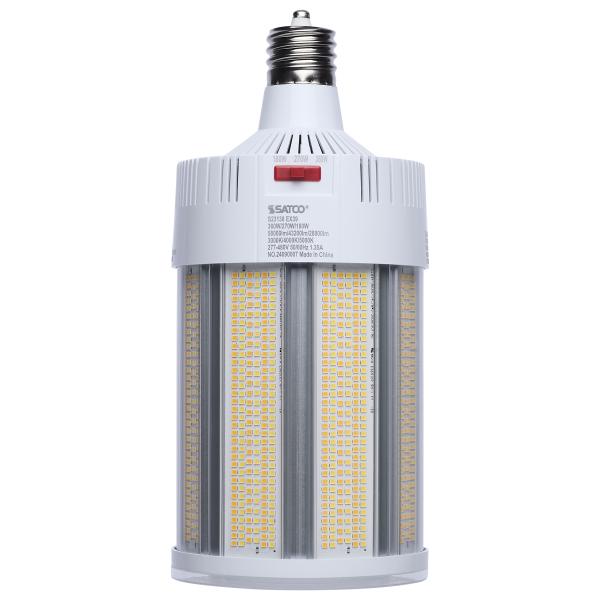

360/270/180 Watt - 30K/40K/50K CCT - Field Selectable LED - Corncob - Mogul Extended Base - 277-480 Ranged Voltage - 750 Watt HID Replacement

360/270/180 Watt - 30K/40K/50K CCT - Field Selectable LED - Corncob - Mogul Extended Base - 277-480 Ranged Voltage - 750 Watt HID Replacement

Regular price $204.44
Regular price Sale price $204.44
Sale Sold out
Quantity

SATCO NUVO Hi-Lumen Hi-Pro lamps deliver exceptional LED illumination, replacing metal halide lamps from 450W up to 1000W. With a staggering maximum output of over 73,000 lumens, they provide superior brightness while improving energy efficiency and reducing maintenance costs. Built as field selectable, users can adjust both wattage and CCT to meet their specific needs and with an extended mogul EX39 base and rated for enclosed fixtures, these lamps are ideal for industrial and commercial applications such as warehouses, gymnasiums, and factory floors. Featuring a Type B ballast bypass design, they operate without the need for a ballast. Available in 120-277V and 270-480V models, they support a wide range of electrical systems, making them suitable for both small- and large-scale operations. A universal operating position allows for flexible installation, and most models include a support bracket and safety cables for added security where required. For enhanced performance and longevity, these lamps feature an integrated active cooling fan and 4kV or 6kV surge protection. With a 50,000-hour functional life and a 5-year warranty, these lamps deliver long-lasting, high-lumen output where it matters most.

View full details

Product Details

Amps 1.300-0.750/0.975-0.563/0.650-0.375A
ANSI base size EX39
Ballasting requirements Ballast Bypass
Base type Mogul Extended
Beam spread 280
Bulb shape Corncob
CCT 3000K/4000K/5000K
CCT selectable Yes
Color temperature Soft White to Natural Light
CRI 80+
Dimmable Yes-Dimmable
FCC compliant Yes
Finish White
Height 14.17 in
Hid equivalent 750W
Housing color White
Indoor outdoor Indoor and Outdoor
Installation notes Not for use in vapor tight fixtures.
Ip rating IP54
Lamp ballast type a b c Type B
Lamp filament LED
Length 5.91 in
Lens finish Clear
Lens material Polycarbonate (PC)
Life hours rated 50000
Lighting technology LED
Location rating Damp
Lumens 59004L/46160L/31799L
Material Aluminum / Polycarbonate (PC)
Operating frequency 60Hz
Operating temperature -40C (-40F) to +50C (+122F)
Pack quantity 1
Power factor 0.97
Product type LED HID
Rated for enclosed fixture Yes
RoHS compliant Yes
Safety listing cULus - Classified;cULus - Listed
Surge protection Built-in surge protection - 4KV
Thd <20%
Three way compatible Yes
Volts 277V-480V
Warranty 5-Years
Wattage 360W/270W/180W
Weight 4.2 lb
Width 5.91 in
