S16442

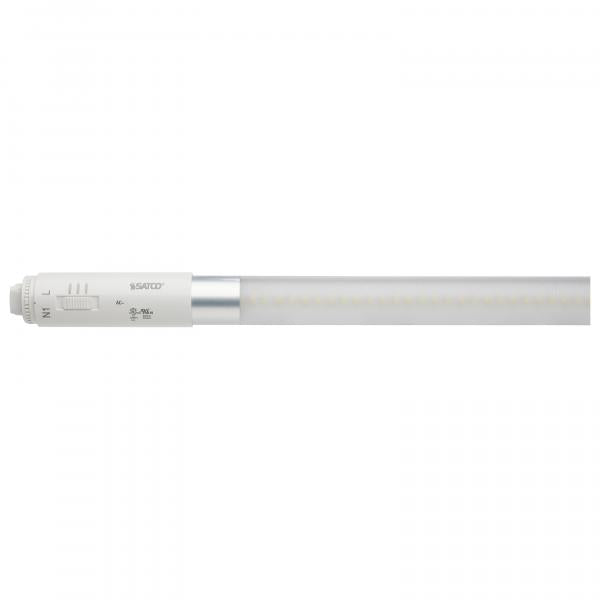

45 Watt T8 LED - CCT Selectable - 120-277 Volt - Single or Double Ended - Type B Ballast Bypass
45 Watt T8 LED - CCT Selectable - 120-277 Volt - Single or Double Ended - Type B Ballast Bypass
Regular price
$51.98
Regular price
Sale price
$51.98
No reviews
Quantity
Couldn't load pickup availability
SATCO NUVO's LED T8 Sign Lamps are the ideal lamp to replace traditional T8 lamps. With fourteen sizes from 18 inches to 120 inches, these lamps can fit virtually any size sign cabinet. Easily install the lamps with direct single or double-ended wiring to instantly start saving on energy and maintenance costs. Make the most of the sign's art or company name with these CCT selectable models, and choose from 4000K/5000K/6500K at installation.
Share
Product Details
| Amps | 0.375-0.162A |
|---|---|
| ANSI base size | R17d |
| Ballasting requirements | Ballast Bypass |
| Base type | Recessed Double Contact HO/VHO |
| Beam spread | 360 |
| Bulb shape | T8 |
| CCT | 4000K/5000K/6500K |
| CCT selectable | Yes |
| Color temperature | Cool White to Daylight |
| CRI | 80+ |
| Dimmable | Non-Dimmable |
| FCC compliant | Yes |
| Finish | White |
| Fluorescent equivalent | 132W |
| Height | 1.15 in |
| Housing color | White |
| Incandescent equivalent | 125W |
| Indoor outdoor | Indoor |
| Installation notes | Not for use in vapor tight fixtures. EM Driver, S8002 will operate only one side of the lamp in EM mode installed as the backup. |
| Ip rating | IP20 |
| Lamp ballast type a b c | Type B |
| Lamp end type | Double Ended;Single Ended |
| Lamp filament | LED |
| Length | 117 in |
| Lens finish | Frost |
|---|---|
| Lens material | Plastic |
| Life hours rated | 50000 |
| Lighting technology | LED |
| Location rating | Damp |
| Lumens | 6300L/6500L/6200L |
| Material | Polycarbonate (PC) |
| Operating frequency | 50/60Hz |
| Operating temperature | -20C (-4F) to +45C (+113F) |
| Pack quantity | 1 |
| Power factor | 0.9 |
| Product type | Linear |
| Rated for enclosed fixture | Yes |
| RoHS compliant | Yes |
| Safety listing | cRUus - Recognized Component;cULus - Certified;cULus - Classified |
| Surge protection | Built-in surge protection - 1KV |
| Thd | 25% |
| Three way compatible | No |
| Tube guard use | No |
| Volts | 120V-277V |
| Warranty | 5-Years |
| Wattage | 45W |
| Weight | 2.43 lb |
| Width | 1.15 in |
