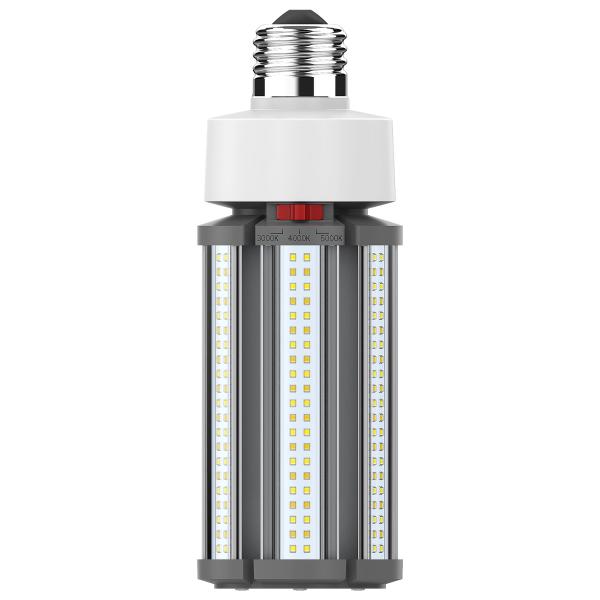

45 Watt LED HID Replacement - CCT Selectable - Type B - Ballast Bypass - Medium Base - 277-480 Volt - ColorQuick Technology
45 Watt LED HID Replacement - CCT Selectable - Type B - Ballast Bypass - Medium Base - 277-480 Volt - ColorQuick Technology
Regular price
$68.04
Regular price
Sale price
$68.04
No reviews
Quantity
Couldn't load pickup availability
Satco's 45 watt corncob lamp is the lamp of choice for large scale applications. Illuminate gymnasiums, warehouses, or any other venue with high ceilings requiring superior light output. This CCT selectable lamp delivers 50,000 hours of clean, energy saving light.
Share
Product Details
| Amps | 0.162-0.094A |
|---|---|
| ANSI base size | E26 |
| Ballasting requirements | Ballast Bypass |
| Base type | Medium |
| Beam spread | 300 |
| Bulb shape | Corncob |
| CCT | 3000K/4000K/5000K |
| CCT selectable | Yes |
| Color temperature | Warm to Cool White |
| CRI | 80+ |
| Dimmable | Yes-Dimmable |
| Enclosure rating | Enclosed Rated Lamp |
| FCC compliant | Yes |
| Finish | White |
| Height | 3.66 in |
| Hid equivalent | 200W |
| Housing color | Dark Gray |
| Incandescent equivalent | 125W |
| Indoor outdoor | Indoor;Outdoor |
| Installation notes | Not for use in vapor tight fixtures. |
| Ip rating | IP64 |
| Lamp ballast type a b c | Type B |
| Lamp filament | LED |
| Length | 10.98 in |
| Lensed | Yes |
|---|---|
| Lens finish | Clear |
| Lens material | Plastic |
| Life hours rated | 50000 |
| Lighting technology | LED |
| Location rating | Damp |
| Lumens | 5850L/6300L/6075L |
| Material | Aluminum / Polycarbonate (PC) |
| Operating frequency | 50/60Hz |
| Operating temperature | -30C (-22F) to +45C (+113F) |
| Pack quantity | 1 |
| Photocell or sensor | Optional |
| Power factor | 0.9 |
| Product type | Corncob |
| Rated for enclosed fixture | Yes |
| RoHS compliant | Yes |
| Safety listing | cRUus - Recognized Component;cUL - Certified;cUL - Classified |
| Surge protection | Built-in surge protection - 4KV |
| Three way compatible | No |
| Volts | 277V-480V |
| Warranty | 5-Years |
| Wattage | 45W |
| Weight | 1.83 lb |
| Width | 3.66 in |
